THE PERFECT SUBSTITUTE OF TRADITIONAL ROTAMETERS
Infinity Flow Sensors Dispenser necessarily has a flow sensor with magnetic multi-blade spinning rotor(impeller)
mounted inside at right angles to the flow. the rotational speed of the impeller is proportional to the velocity of fluid.
the pulse generated is transmitted and converted into volumetric measurement. These Dispenser are calibroted to give
reliable flow measurement.

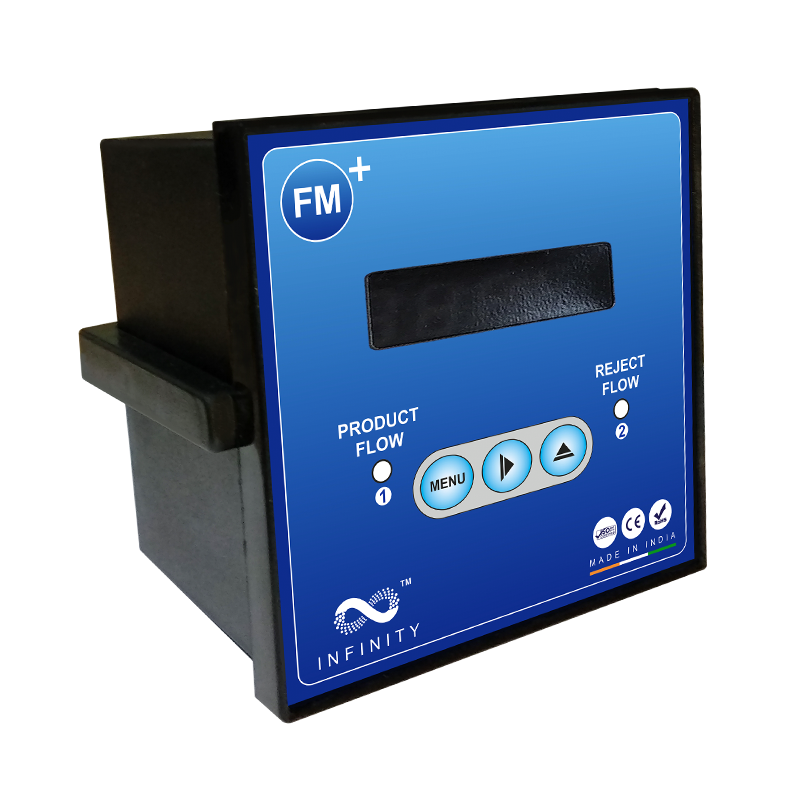

SMART FLOW METER CONTROLLER
- Online Display
- High Accuracy
- Inexpensive
- Easy Installation
- Easy Maintenance
- Easy Parameters Setup
- Less Piping Work
- Easy to Monitor
TRIPPING
- High Flow Trip
- Low Flow Trip
- Particular Amount of Volume Passed in Batch & Trip
SETABLE
- Flow in Liter & Flow in m³ Set
- Passed Particular Volume Tripping Set
- Display Scrolling On / Off Set
- Display Scrolling Time Set
- Flow 1 & Flow 2 Size Differently Set
- Flow 1 & Flow 2 Tripping Differently Set
SENSOR SPECIFICATIONS
- Sensor body: Nylon
- Rotor (impeller): PP
- Shaft: Carbide
- Bearing: Ceramic
- Sensing Element: Hall Effect I.C.
- Maximum Pressure: 5 kg/cm²
- Maximum Temperature: 60°C
- Accuracy: ± 2% of Full Scale
Display
- 16x2 Alphabetical Blue / White
- Total Plant Run Hours
- Online TDS
- RWP Pump Ampere
- HPP Pump Ampere
TRIPPING
- High Flow Trip
- Low Flow Trip
- Particular Amount of Volume Passed in Batch & Trip
PROTECTION
- Over & Under Ampere
- Over & Under Voltage
- Dry Runing
- Single Phasing
- Reverse Phasing
- Phase Unbalancing
METER SPECIFICATIONS
- Physical Dimensions: 96(W) x 96 (L) x 53 (D) mm
- Cut Out Size: 92(W) x 92 (L) mm
- Enclosure: ABS
- Mounting: Pane
- Input Supply: 230 V A.C.
- Display: 16X2 LCD Display
- Calibration Point: Using Internal Setting
- Temperature: 0-60 ºC
- Accuracy: ±2% FSD
- Hooter: YES
- Control Relay: 10A @ 230V AC
- Ranges (m³): 0 to 99999.99
- Ranges (Liter): 0 to 99999.99
- Output: From Relay
SENSOR FEATURES
- Inexpensive & Accurate
- All Plastic whetted parts
- Easy to install and maintain
- Each sensor calibrated with fiting for k factor (ml/pulse)
- High amplitude output signal from sensor eliminates needs of re-transmission up to 100 meters.
- Ceramic Bearing for superior Flow performance
- Field Maintenance easy with threaded housing
- Sensor can be used directly with PLC or universal indicator
- Each Meter is hydro tested for 7kg/cm² for m³ / Liter
FEATURES
- Two Online Flow in One Display
- Alphabetical 16×2 LCD Display for Easy Monitoring
- Display Total Volume Upto 99999.99 liter & 99999.99 m³
- 10A / 230V Relay For Every Tripping
- Inbuilt Hooter facility For Every Tripping
- Two Flow’s Separate Tripping LED Indication
- Flow Sensor’s Easy Size Selection
- Product & Project ½",¾",1",1 ½”, 2" Flow Sensors Size Supports
- Provision for Every Types of Auto MPV & GSM Facilities Optional
